30um 100m³ Cyclone Desander , Desanding Machine Heavy Duty

Product Categories
Unique Piling
Contact Now

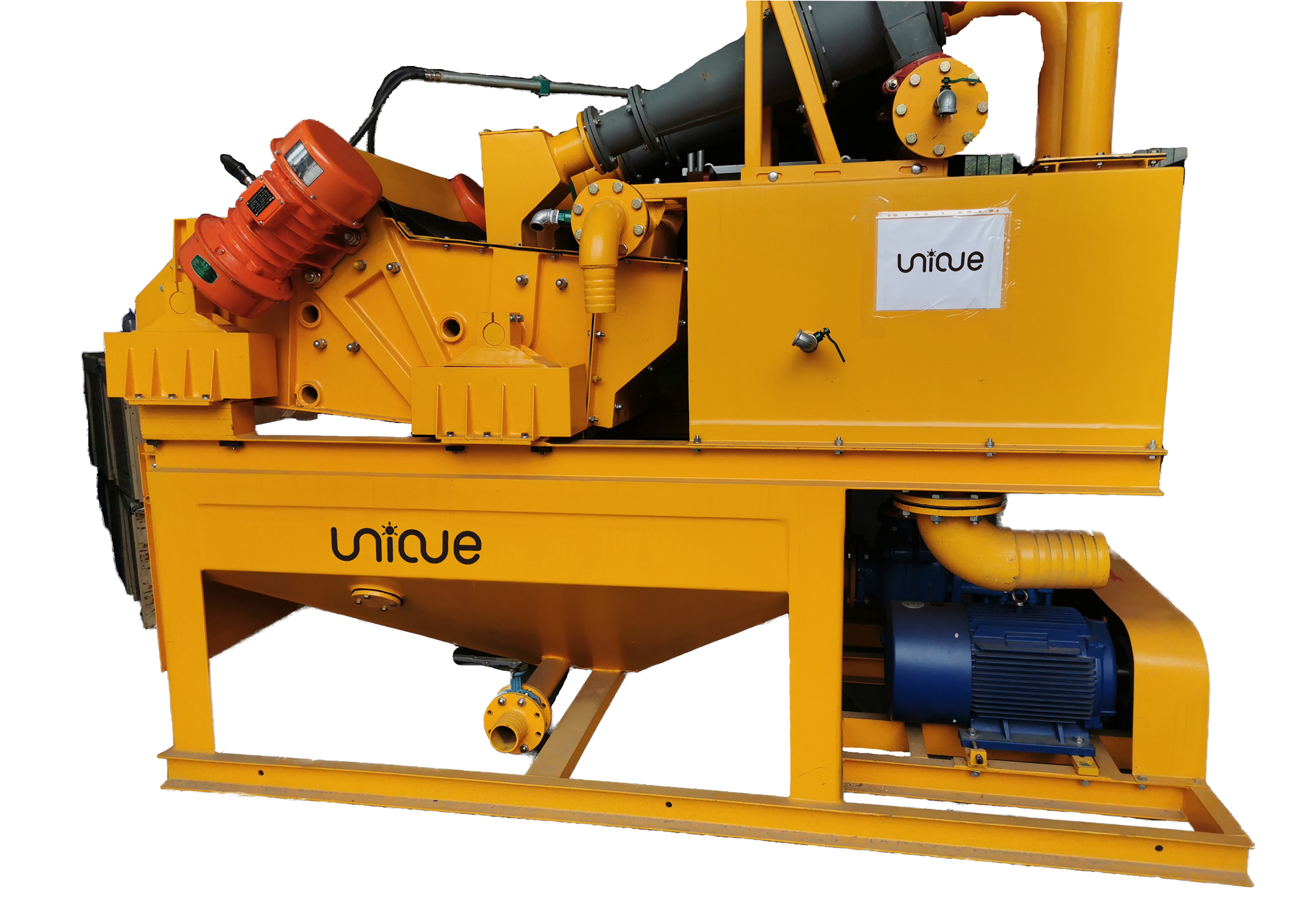

30um 100m³ Cyclone Desander , Desanding Machine Heavy Duty

Brand Name : Unique

Model Number : UN-250

Certification : ISO9001:2008

Place of Origin : Hunan, China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 300 Unit/Units per Month

Delivery Time : 15-30 days

Packaging Details : 1. Wrapped with plastic film. 2. Fixed with iron support, wheel or pallet when necessary. (3. Packed with wooden cases for small things.)

Material : Q345B, 16Mn, Q195-Q345, etc.

Color : Customized

Application : Drilling Mud Slurry Water Sand Separation

Soild feed capacity : 10t/h~80t/h

Slurry feed capacity : 20m /3h~250m/3h

Processing type : Casting/Forging/Welding

Machine type : Rotary Drilling Rig

Warranty : 1 Year

After-sales service provided : Online support,Video technical support

Condition : New,100%new

Type : UN - 250/30, UN - 200/60,UN - 250/60,UN - 250/45

Contact Now

30um 100m³ Cyclone Desander , Desanding Machine Heavy Duty



Main Applications:

*By fully purifying slurry, it is favorable to control slurry index, reduce drill sticking phenomena, and improve drilling quality.

*By thoroughly separating the slag and soil, it is favorable to enhance drilling efficiency.

*By realizing the repetition use of slurry, it can save slurry making materials and thus reduce the construction cost.

*By adopting the technique of close-cycle purification and low water content of removed slag, it is favorable to reduce environmental pollution.



Desander is widely used for the purification and recycling of slurry in the construction of hydropower, continuous concrete wall, slurry shield tunnel, etc. The equipment is increasingly becoming a necessity of civil engineering construction since it not only can cut down construction cost, but also can reduce the pollution of the environment.







30um 100m³ Cyclone Desander , Desanding Machine Heavy Duty



UNIQUE DESANDER DATA





Model



UN - 20/30





UN-50/30





UN - 100/30



UN - 200/60



UN - 250/30



UN - 250/45



UN - 250/60

Slurry feed capacity



20m3/h





50m 3/h



100m3/h



200m3/h



250m 3/h



250m 3/h



250 m 3/h

Cut point



30 μm





50 μm



30 μm



60 μm



30 μm



45 μm



60-20 μm

Soild feed capacity



10 t/h





10-26t/h



25-50t/h



25-80t/h



25-80 t/h



25-80 t/h



25-80 t/h

Total capacity



9.7 kw





17.2kw



24.2kw



48 kw



58-60.8 kw



58-60.8 kw



58-60.8 kw



Weight



1700kg





2100kg



2700kg



4800kg



4900-7600kg



4900-7600kg



4900-7600kg
30um 100m³ Cyclone Desander , Desanding Machine Heavy Duty
30um 100m³ Cyclone Desander , Desanding Machine Heavy Duty
30um 100m³ Cyclone Desander , Desanding Machine Heavy Duty
30um 100m³ Cyclone Desander , Desanding Machine Heavy Duty
30um 100m³ Cyclone Desander , Desanding Machine Heavy Duty
30um 100m³ Cyclone Desander , Desanding Machine Heavy Duty
30um 100m³ Cyclone Desander , Desanding Machine Heavy Duty
30um 100m³ Cyclone Desander , Desanding Machine Heavy Duty
30um 100m³ Cyclone Desander , Desanding Machine Heavy Duty
30um 100m³ Cyclone Desander , Desanding Machine Heavy Duty
